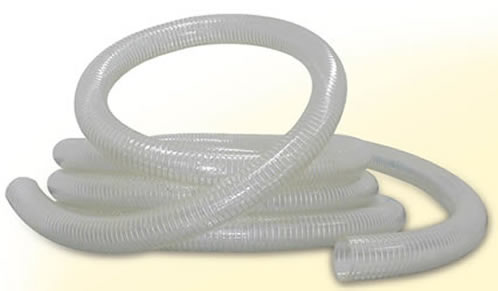

Spring Hose (Clear Hose)

Heavy-Duty transparent PVC Hose reinforced with hight tensile carbon steel helix. Excellent resistance to pressure vacuum and abrasion. Highly flexible to wide range of temperature.

Application

Suitable for oil and chemical resistance applications.
ideal for pumping and transfering of liquid, power and granular material.
Exceptionally tough and durable for heavy-duty industrial applications.
Extensively used for suction and discharge - public utilities, drainage, ships, silos, and irrigation plants.


Excellent Pressure Resistant	Superior Abrassion Resistant And Durability	Excellent Flexibility	Excellent For Fluid Conveyance	Excellent Transparency

PRODUCT CODE	INNER DIAMETER	OUTER DIAMETER	WORKING PRESSURE	WEIGHT	COIL LENGTH
PRODUCT CODE	(mm)	(mm)	(kgf/cm²)	(g/m)	(m)
SPO15	16	22	6	245	100
SPO19	19	26	5	335	50
SPO25	25	33	5	525	50
SPO32	32	41	4	775	40
SPO38	38	48	4	925	40
SPO50	51	62	3	1375	40
SPO65	63	75	2	1765	20
SPO75	76	91	2	2980	20
SPO90	90	106	2	3700	10
SPO100	102	118	2	4100	10

Internal Diameter: ±2%
All technical data are subjected to ±5% tolerence
