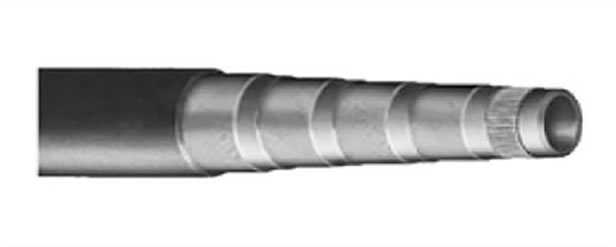

Hydraulic Hose, EN 856 4SP

Applicable Spec.	EN 856 4SP/ISO 3862-1 4SP
Tube	Black Oil Resistant Synthetic Rubber
Reinforcement	Four High Tensile Steel Wire Braid
Cover	Black Oil & Weather Resistant Synthetic Rubber
Temperature Range	-40°C ~ 100°C (Continuous Service), 125°C (Max Operating Temp.)

SIZE (I, D)		O.D.	W.P.	B.P.	Bend Radius	Weight
inch	mm	mm	bar	bar	mm	kg/m
½”	12.7	24.6	425	1, 700	230	0.93
⅝”	15.9	28.2	400	1, 600	250	1.05
¾”	19.0	31.8	350	1, 400	170	1.15
1”	25.4	38.7	280	1, 120	340	1.90
1-¼”	31.8	49.5	210	840	460	3.03
1-½”	38.1	56.2	185	740	560	3.64
2”	50.8	70.1	165	660	660	5.32
